Approach way inset light
JJ-Q-2Application:
To be installed on approach way centerline.Construction and features:
-JJ-Q-2 is an approach way inset centerline light.
-It uses three halogen light bulbs of 3x105W and 6.6A.
-With elevation of 12.5mm above ground level, together with the shallow/low design of the light emitting windows, it can effectively reduce the influence of rain and snow on the lighting system.
-Rubber washer is attached to the light emitting windows to allow for fast replacement.
-Light fittings and its respective external shell are made up of strong Aluminium alloys that were heat treated, providing them with light weight and high strength to withstand impact as well as good corrosion resistance.
-O-type washers are used to provide a good enclosure within the product, preventing seepage and ensuring safety of use.
-Three of the halogen lights point at the same direction, emitting white colour light beams.Model
JJ-Q-2
Ampere
6.6A
Hertz
50Hz
Watt
3x105W
Dimension

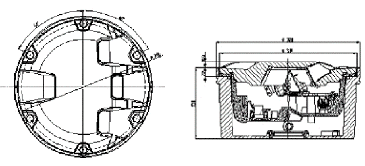

304mm(diameter) x 162.5 mm (height)
Cable entry
Bottom or side (both applicable)
Colour of light
White
Weight
11.5kg
