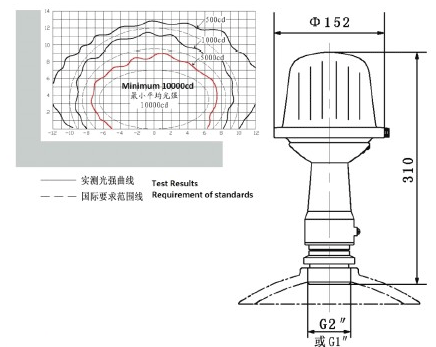

Elevated Runway Inset Light
PB-L-1Application:
Type I-III airport runway edge.Construction and features:
-Aluminium alloy shell, light weight and good corrosion resistance.
-Glass panel capable of withstanding sudden change in temperature without fracture.
-Glass panel and external shall are connected with our special design, allowing maintenance to be done without extra tools.
-The design adopts spherical level structures, which provide high precision position calibration.
-Colour of the light satisfies the standard set by ICAO.
-Slit region will break under the impact of 204Nm to 680Nm, to protect the aircraft should collision happens.Colour of light
Number of light bulb
Main beam coverage
Average Luminance Intensity (cd)
Bromine Tungsten light
Wind Speed
(km/h)Weight
(kg)Horizontal
Elevated
Ampere (A)
Watts
(W)Red,
Yellow,
White1
±6.5°
0~7°
>10000
6.6
200
482
<3
